System type: 4-unit 2-frequency inversion
Rated power: 450W
Maximum power: 900W
Peak power: 1800W
Nominal impedance: 16 OHMS
Recommended rated output power of amplifier: 500W—800W@ 8 ohms
Nominal sensitivity (1W@1m): 103 dB
Maximum sound pressure level (Pmax@1m): 130dB@450W (133dB@900W)
Frequency bandwidth (-10dB): 65Hz-20KHz
Nominal directivity (-6dB): 90ºH*8ºV for a single array module
(Note: The vertical coverage angle of the line array varies according to the degree and curvature of the array)
Adjustable angle: 0°～11°, unit adjustment angle is 1°
Recommended number of arrays: ≥4
Rated parallel number: ≤4
Transducer configuration: low frequency driver 8 "(200mm unit 50 mm voice coil) × 2
High frequency driver
1.4 "（36mm voice coil）×2
High frequency waveguide horn
1″(25 mm throat)×2
Crossover mode: passive
Connector: SPEAKON NL4×2
PIN1+/2+POS.
PIN1-/2-NEG.
Box material: 15mm (0.6″) birch plywood
Hanging hardware: professional adjustable angle hanging piece
colour:
The default is black polyurea spray, other colors can be customized according to requirements

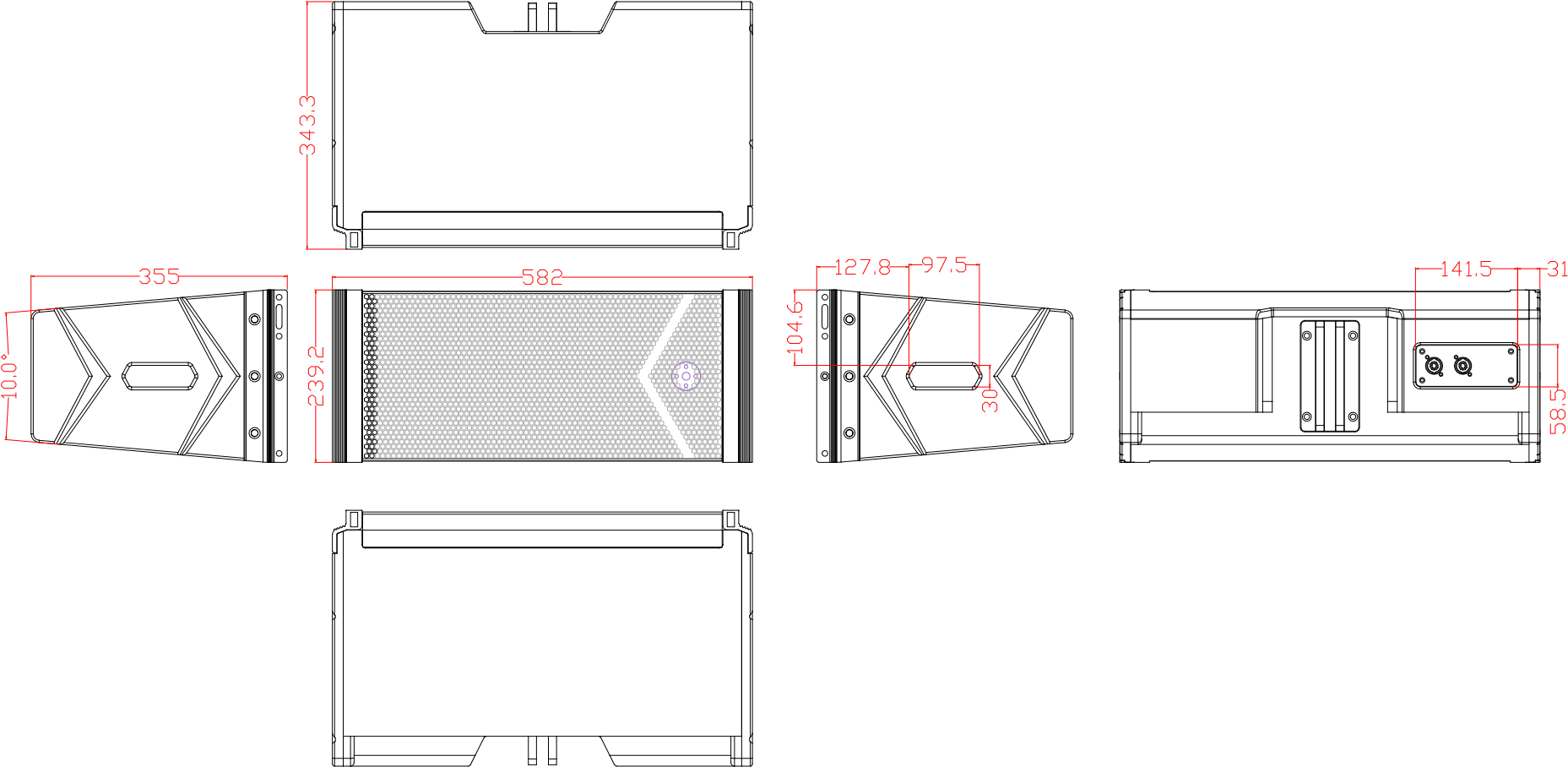

Box size: W582mm*D239.2mm*H355mm
Weight (each): 20.95kg
Gross weight (single pack): 23.5kg
