System type: 8 units full frequency closed type
Rated power: 320W
Maximum power: 640W
Peak power: 1280W
Nominal impedance: 4 ohms
Recommended rated output power of amplifier: 400W—800W@4 ohms
Nominal sensitivity (1W@1m): 97dB
Maximum sound pressure level (Pmax@1m): 122dB@320W(125dB@640W)
Frequency bandwidth (-10dB): 90Hz—18.5KHz
Nominal directivity (-6dB): 90°H×30°V
Transducer configuration: full frequency driver 3″ (75mm full frequency unit 20mm voice coil) × 8
Frequency division mode: -
Connector: Standard European-style four-pin socket
Cabinet material: 12mm (0.5″) MDF board
Color: The default is black environmentally friendly water-based spray, other colors can be customized according to requirements

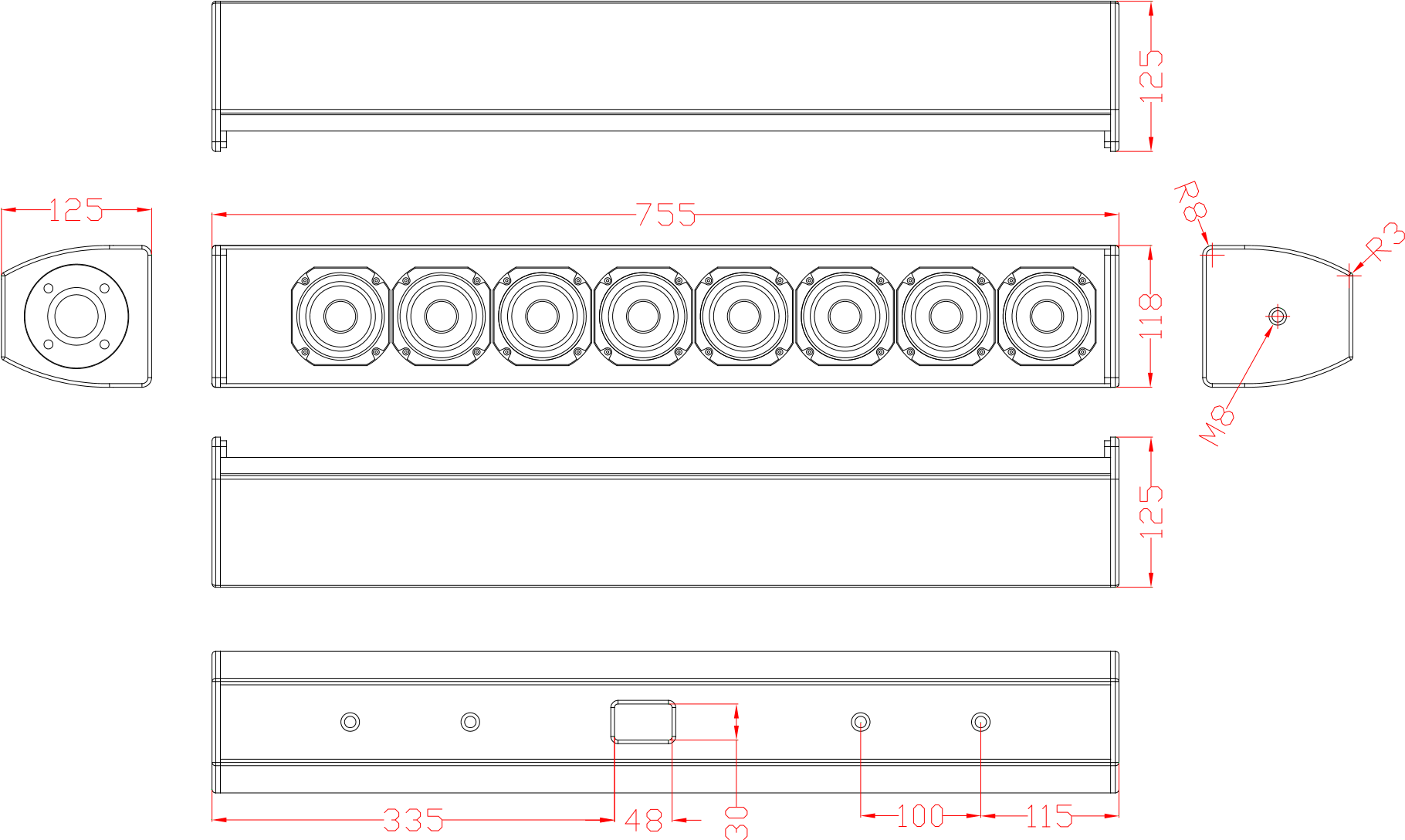

Box size: W118mm*D125mm*H755mm
Weight (each): 7.45kg
Gross weight (single pack): 8.35kg
