System type: 2 units, 2 frequency division and phase inversion
Continuous power: 550W
Maximum power: 1100W
Peak power: 2200W
Nominal impedance: 8 OHMS
Recommended rated output power of amplifier: 700 W—1000 W@8 OHMS
Sensitivity (1W@1m): 100 dB
Maximum sound pressure level (Pmax@1m): 127 dB@550w(130dB@1100w)
Pointing characteristic: 80°H×50°V
Frequency bandwidth (-10dB): 45Hz-20KHz
Crossover mode: passive
Transducer configuration: 15 "(380mm unit 75mm voice coil) low frequency driver×1
3 "(75mm voice coil) high frequency driver×1
Connector: SPEAKON NL4×2
PIN1+/2+POS.
PIN1-/2-NEG.
Box material: 18 mm (0.7″) high-quality birch plywood
Color: The default is black, other colors can be customized according to requirements

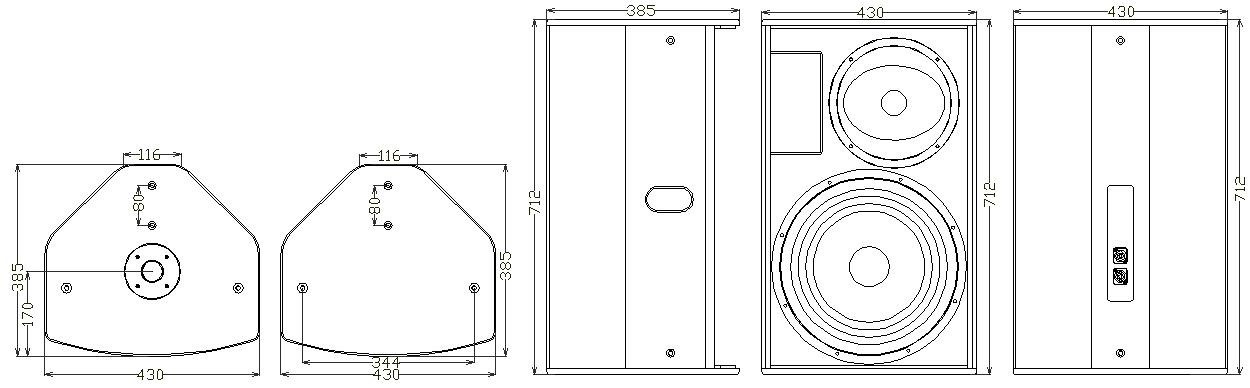

Box size: W430mm*D385mm*H712mm
Weight (each): 27.95 kg
Gross weight (single pack): 30.85kg
