System type: 2-unit 2-way full-range speaker system
Continuous power: 500W
Maximum power: 1000W
Peak power: 2000W
Nominal impedance: 8 OHMS
Recommended rated output power of amplifier: 600 W—1000W@8 OHMS
Sensitivity (1W@1m): 98 dB
Maximum sound pressure level (Pmax@1m): 125dB@500w (128dB@1000w)
Pointing characteristic: 90°H×70°V
Frequency bandwidth (-10dB): 50Hz-20KHz
Crossover mode: passive
Transducer configuration: 12" (305mm unit 75mm voice coil) low-frequency driver × 1
1.7 "(44mm voice coil) high frequency driver×1
Connector: SPEAKON NL4×2
PIN1+/2+POS.
PIN1-/2-NEG.
Box material: 18 mm (0.7″) high-quality birch plywood
Color: The default is black, other colors can be customized according to requirements

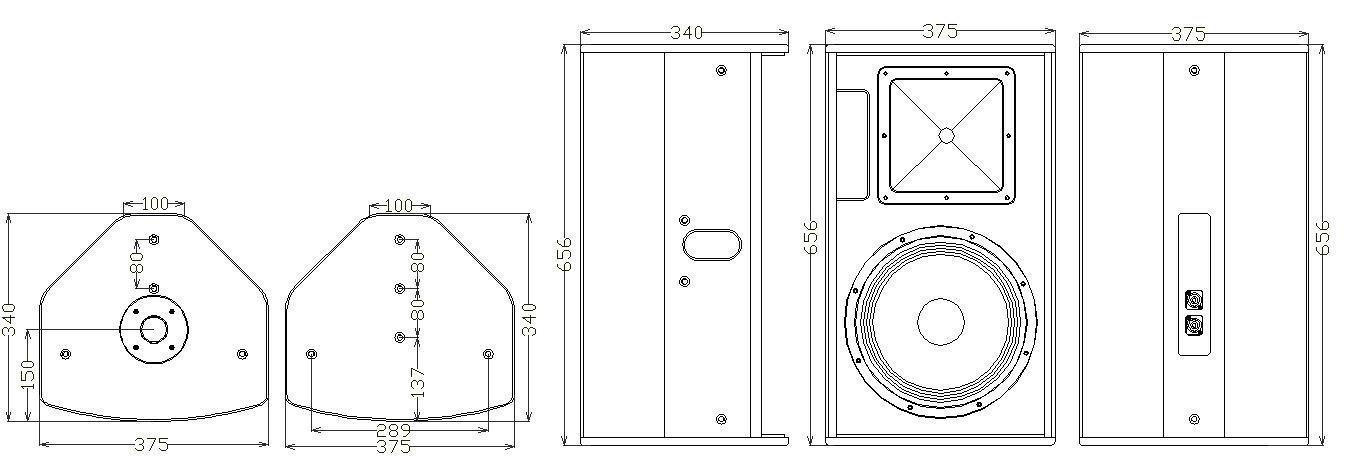

Box size: W375mm*D340mmH656mm
Weight (each): 21.50kg
Gross weight (single pack): 23.85kg
