System type: 2 units, 2 frequency division and phase inversion
Rated power: 400W
Maximum power: 800W
Peak power: 1600W
Nominal impedance: 8 OHMS
Recommended rated output power of amplifier: 500W—800W@8 OHMS
Sensitivity (1W@1m): 97dB
Calculate the maximum sound pressure level: 123dB@400w(126dB@800w)
Pointing characteristic: 90°H×70°V
Frequency bandwidth (-10dB): 65Hz-20KHz
Crossover mode: passive
Transducer configuration: 10" (250mm unit 65mm voice coil) low-frequency driver × 1
1.3 "(34mm voice coil) high frequency driver×1
Connector: SPEAKON NL
SPEAKON NL4×1 PIN1+/2+POS.
PIN1-/2-NEG)
Box material: 18 mm (0.7″) high-quality birch plywood
Color: The default is black, other colors can be customized according to requirements

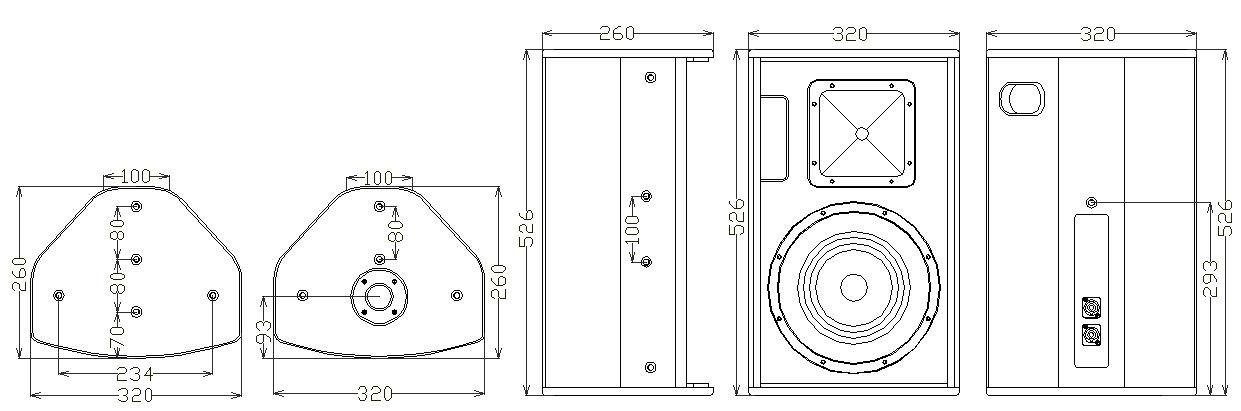

Box size: W320mm* D260mm* H526mm
Weight (each): 12.7kg
Gross weight (single pack): 14.35kg
