System type: 3 units, 2 frequency division and phase inversion
Rated power: 300W
Maximum power: 600W
Peak power: 1200W
Nominal impedance: 8 OHMS
Recommended rated output power of amplifier: 400W—600W@8 OHMS
Nominal sensitivity (1W@1m): 97dB
Maximum sound pressure level (Pmax@1m): 122dB@300w(125dB@600w)
Frequency bandwidth (-10dB): 90Hz-20KHz
Nominal directivity (-6dB): 90°H×90°V
Transducer configuration: low frequency driver 6.5" (165mm unit 35mm voice coil) × 2
High frequency driver 1 "(25 mm voice coil) × 1
Crossover mode: passive
Connector: SPEAKON NL
SPEAKON NL4×1 PIN1+/2+POS.
PIN1-/2-NEG)
Box material: 12mm (0.47″) high-quality birch plywood
Color: The default is black, other colors can be customized according to requirements

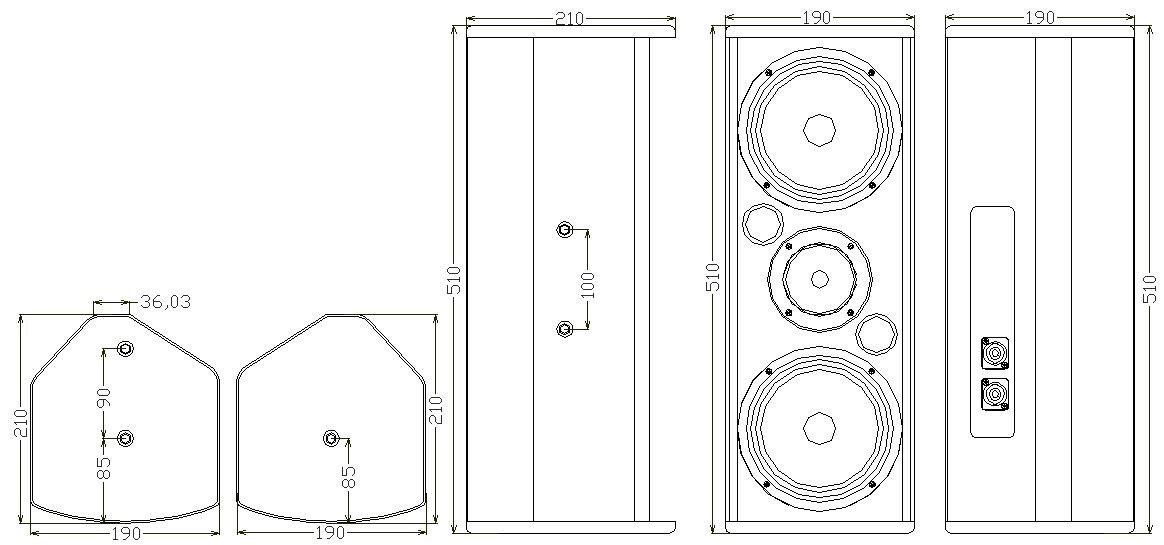

Box size: W190mm*D210mm*H510mm
Weight (each): 8.9kg
Gross weight (pair loading): 19.3kg
