System type: 2 units, 2 frequency division and phase inversion
Rated power: 300W
Maximum power: 600W
Peak power: 1200W
Nominal impedance: 8 OHMS
Recommended rated output power of amplifier: 400W—600W@8 OHMS
Nominal sensitivity (1W@1m): 97dB
Maximum sound pressure level (Pmax@1m): 122dB@300w (125dB@600w)
Frequency bandwidth (-10dB): 80Hz-20KHz
Nominal directivity (-6dB): 100°H×60°V
Transducer configuration: low frequency driver 8″ (200mm unit 50mm voice coil) × 1
High frequency driver 1.3 "(34 mm voice coil)×1
Crossover mode: passive
Connector: SPEAKON NL
SPEAKON NL4×2 (PIN1+/2+POS.
PIN1-/2-NEG)
Box material: 15mm (0.6″) high-quality plywood
Color: The default is black, other colors can be customized according to requirements

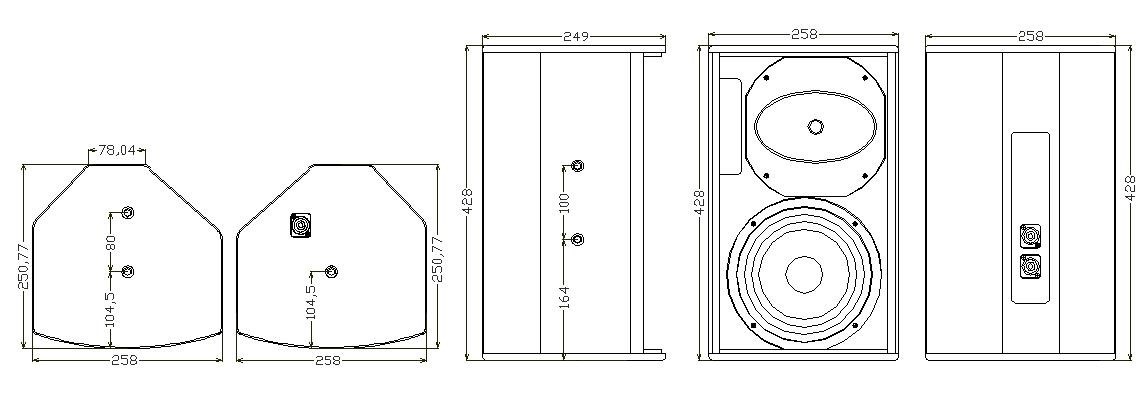

Box size: W258mm*D250mm*H428mm
Weight (each): 10.35kg
Gross weight (single pack): 11.60kg
